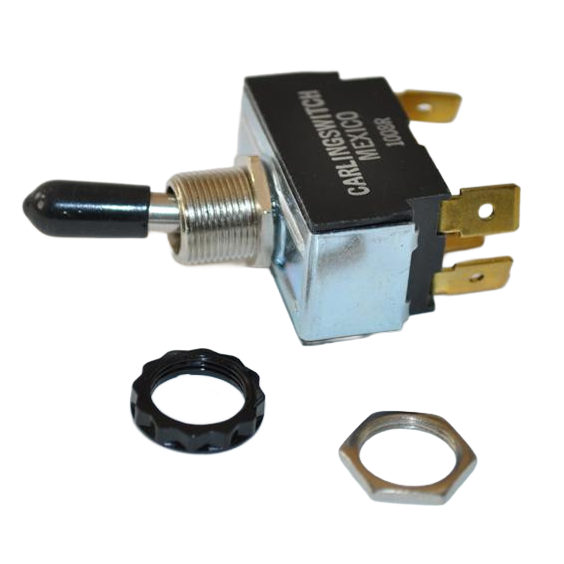

71R0400 4-Terminal Toggle Switch (DPDT, On–On–On)

When a control circuit needs a reliable multi-position switch, a DPDT toggle is a clean solution. The Red Dot 71R0400 is a 4-terminal toggle switch with an On–On–On function, which makes it useful for selecting modes or directing power through multiple circuits. Because fitment and panel space matter, this switch includes defined base dimensions and threaded mounting specs. In addition, it’s supported by a wide interchange list, so it’s easier to match older fleet references and service software. Why This Switch Works DPDT design for flexible circuit control On–On–On function for multi-position selection Compact mounting footprint for panels and consoles Widely cross-referenced in HD vehicle systems Product Specifications Part Type: Toggle Switch Red Dot Part No.: 71R0400 Red Dot Factory No.: RD-5-0071-0P Type/Description: DPDT / Chrome Function: On–On–On Number of Terminals: 4 Terminal/Harness: 4 Terminal Base Length: 1 5/16″ Base Width: 3/4″ Flange to Blade End: 1 1/4″ Flange to Bezel Shaft Top: 1/2″ Thread Diameter: 15/32-32 UNS-2A Keyway: .072 x .038 Cross References TEXAS TRUCK AC: 850-7147 AIRSOURCE – MEI: 1028 ALLIANCE: ABP N83 322035 ALLIANCE: ABP N83 322340 BERGSTROM: 650655 CLIMATECH: BE1000 CLIMATECH: BE1020 TRP/CLIMATECH: BE10000 COOLSTAR – MEI: 901-1118 EUCLID IND: E-807111 FLEETRITE: ZGG13486 FLEETRITE: ZGG16596 KYSOR: 2199007 MACK: 4379-RD500710 MOTIVAIR: 31413 MOTIVAIR: 35431 NAVISTAR INTERNATIONAL: 1669348-C1 NDNS: 1669348C1 NDNS: ABPN83322035 NDNS: ABPN83322340 PACCAR: 221030 PRIMATECH: PTAC1028 RED DOT – AFTERMARKET: 71R0400 RED DOT – FACTORY: RD-5-0071-0 ROADFORCE: RF4766506783 TRUCK AIR – MEI: 44875 TRUCKAC : T2436 TTA/C: 10-1013 VOLVO: 3093411 VOLVO (alt): G2028504 VOLVO (alt): RDHRD500710P WESTERN STAR: 60090-4416 Caterpillar: RD-5-0071-0 John Deere: 842948700 Mack (alt): 4379-RD50071-0 Interchange Numbers 1-3486 1-3597 1-6597 1028 11-2610 1669348C1 1863735 2199007 2199104 221030 232-8355 3093411 4379-RD500710 4379-RD500710P 60090-4416 650644 650655 71R0400 842948700 850-7147 901-1118 ABP N83 322035 ABP N83 322340 BE10000 BE10200 E-807111 G2028504 RDHRD500710P RDT71R0400 SWI1118 VE2054 ZGG13486 ZGG16596
